Technical Specifications and Customization Services for HQ046 LED Light Strip FPC

Abstract

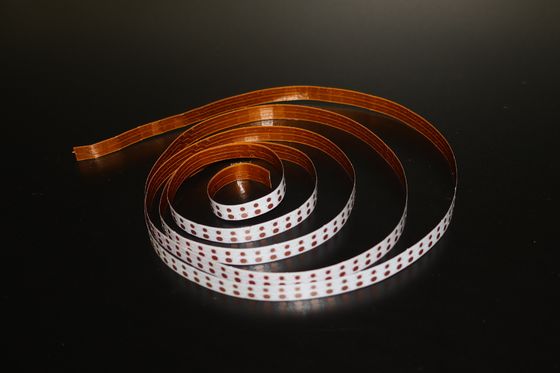

1. Product Overview of HQ046 LED Light Strip FPC

2. Technical Specifications and Customization Scope

2.1 Dimensional Specifications

• Precision FPC: Maximum size of 240×500mm (limit specification: 250×500mm); no minimum size constraints.
• Roll-type FPC: Maximum width of 240mm; maximum length of 100 meters.

2.2 Circuit Layer Configurations

• Single-layer FPC: Features a simplified structure, cost-effective and suitable for low-complexity circuits in industrial controls, electronic instruments, and basic lighting systems.
• Double-layer FPC: Incorporates dual copper foil layers interconnected by enhanced plated vias, enabling superior current handling and heat dissipation. It is ideal for high-integration products such as mobile devices, automotive instrument panels, and mid-to-high-end LED light strips .
• Multi-layer FPC: Customizable for ultra-high-complexity applications demanding dense wiring, multi-signal transmission, and advanced functional integration.

2.3 Solder Mask Color and Applications

• Yellow Solder Mask: A universal, cost-effective option compatible with most applications (e.g., general cable assemblies) due to its balanced performance and adaptability.
• Black Solder Mask: Preferred for high-end or light-absorbing scenarios (e.g., automotive lighting, smartphone backlights, LED displays) as it minimizes light reflection and enhances visual uniformity .
• White Solder Mask: Equipped with a specialized reflective coating to maximize light utilization, making it suitable for lighting fixtures, LED displays, and medical aesthetic devices.

2.4 Copper Foil Thickness

• Precision FPC:
  • Single-layer: 18μm (0.5oz), 35μm (1oz)
  • Double-layer: 12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
• Standard FPC:
  • Single-layer: 18μm, 25μm, 35μm (1oz), 50μm
  • Double-layer: 18-25μm, 25-25μm, 35-35μm, 35-70μm

2.5 Minimum Line Width/Spacing

3. Core Performance and Quality Control

3.1 Flexibility and Bending Resistance

• Each batch of base materials undergoes testing with professional bending equipment to ensure consistent performance.
• All materials endure tens of thousands of bending cycles prior to mass production, guaranteeing resistance to fatigue failure in dynamic application scenarios (e.g., foldable lighting, curved surface installations) .

3.2 Manufacturing Capabilities

• Factory area: Approximately 20,000 square meters.
• Workforce: Over 800 employees, including 50 senior technical specialists.
• Production lines: Specialized in both expedited sample fabrication and high-volume batch manufacturing, supporting flexible production scheduling.

4. Customization Service Process

4.1 Consultation and Technical Support

• Tailored solution design aligned with specific application needs.
• Drawing optimization to enhance manufacturability and performance.
• New product development support, from concept to prototype.
• Professional technical consultation for technical parameter selection and application guidance.

4.2 Quotation

• Standardized technical processes to reduce production variability.
• Strategic high-quality material sourcing to balance performance and cost.
• Efficient production management and process optimization.

4.3 Design and Integration

• Base substrate production with strict material quality verification .
• Circuit routing and schematic design optimization.
• Mold development for customized form factors.
• SMT (Surface Mount Technology) and through-hole assembly with precision alignment .
• Steel mesh fabrication tailored to circuit design requirements.


  All processes adhere to international certification standards to ensure product reliability and consistency.

4.4 Sample Fabrication

5. Certifications and Notes

• Certifications: The product line holds multiple international system certifications (specific details available upon request), ensuring compliance with global industry standards and regulatory requirements.
• Image Disclaimer: All product images on official platforms are authentic. Minor color variations may occur due to lighting conditions, shooting angles, or display resolution differences.
• Continuous Upgrade: Our FPC product portfolio undergoes annual updates and technical upgrades to align with emerging technological trends and market requirements.
